How do I calculate the resistor value for an LED?

Use the formula R = (Vsupply - Vf) / If, where Vsupply is your supply voltage, Vf is the LED forward voltage (typically 1.8-2.2V red, 3.0-3.4V blue/white), and If is the desired forward current in amperes (typically 0.01 to 0.02A for standard LEDs). For example: 5V supply, 2.0V red LED, 20mA current gives R = (5 - 2.0) / 0.020 = 150 ohms.

How do I connect multiple LEDs in series?

For LEDs in series, the total forward voltage is the sum of all individual Vf values. The formula becomes R = (Vsupply - N x Vf) / If, where N is the number of LEDs. All LEDs carry the same current. The supply voltage must exceed the total Vf sum, so check that Vsupply is greater than N x Vf before designing a series string.

How do I connect multiple LEDs in parallel?

For LEDs in parallel strings, each string should have its own current-limiting resistor calculated independently using R = (Vsupply - Vf) / If per string. Never connect multiple LEDs directly in parallel without individual resistors, as slight Vf differences cause unequal current sharing and can destroy LEDs. The total current drawn is If multiplied by the number of parallel strings.

What power rating should I use for the LED resistor?

The resistor dissipates P = (Vsupply - Vf) x If watts, or equivalently P = I^2 x R. Always choose a resistor rated at least 2x the calculated power for reliable long-term operation. For example, if the calculated power is 60mW, use a 1/4W (250mW) rated resistor minimum. In hot environments or continuous operation, derate to 50% of the resistor's rated power.

What is the forward voltage (Vf) of different LED colours?

Typical LED forward voltages: Red 1.8-2.2V, Orange 2.0-2.2V, Yellow 2.0-2.4V, Green 1.9-3.5V (standard green is ~2.1V, high-brightness is ~3.3V), Blue 3.0-3.6V, White 3.0-3.6V (phosphor-converted blue), IR 1.2-1.6V, UV 3.5-4.0V. Always check your specific LED datasheet as values vary by manufacturer and current level.

Can I use the nearest E12 resistor value instead of the exact calculated value?

Yes. Standard E12 and E24 resistor values are the norm in electronics. Using the nearest E12 value above the calculated value will slightly reduce the LED current (safer). Using a value below will slightly increase current (check LED maximum rating). For most indicator LEDs the difference between exact and nearest E12 is less than 10% current variation, which is perfectly acceptable.

How long will my battery last powering an LED?

Battery runtime (hours) = Battery capacity (mAh) / Total current draw (mA). For example, a 2000mAh battery powering two parallel LED strings at 20mA each (40mA total) gives 2000/40 = 50 hours. In practice, reduce this by 20-30% to account for battery voltage sag, temperature effects, and regulator losses.

LED Series Resistor Calculator — Current Limiting Resistor, Vf, Series & Parallel LEDs | CalcEngines

Electronics Calculators

LED Series Resistor Calculator

Name: LED Series Resistor Calculator
Author: CalcEngines

Calculate the correct current-limiting resistor for single LEDs, series strings, and parallel arrays. Get exact and nearest E12/E24 standard values, power ratings, a live schematic, and battery runtime estimation.

LED Resistor Calculator

Single LED · Series String · Parallel Array · Battery Life · Colour Reference

LIVE

LED Colour Preset

Parameters

Supply Voltage (V_s)

Forward Voltage (V_f)

Forward Current (I_f)

Max Rated Current

PWM Brightness Control

Duty Cycle: 100%

Formula

Resistor Value

R = (Vs – Vf) / If

Vs = supply voltage, Vf = LED forward voltage, If = forward current in amperes.

Resistor Power

P = (Vs – Vf) x If
P = If^2 x R

Choose resistor rated at minimum 2x calculated power.

Live Schematic

Results

Required Resistor

—

Voltage across R

—

Resistor Power

—

Min Rated Power

—

LED Power

—

Exact Value

—

Nearest E12

—

Nearest E24

—

I with E12 R

—

PWM Avg Current

—

Series String Parameters

Supply Voltage (V_s)

LEDs in Series (N)

pcs

Forward Voltage per LED (V_f)

Forward Current (I_f)

Series rule: All LEDs carry the same current. Total V_f = N × V_{f each}.
Supply must exceed total V_f. Resistor formula: R = (V_s − N×V_f) / I_f

Common Supply Presets

Results

Required Resistor

—

Total LED V_f

—

Voltage across R

—

Resistor Power

—

Total LED Power

—

Exact R

—

E12 Value

—

E24 Value

—

Min Rated Power

—

Total System Power

—

Series String Breakdown

Component	Voltage Drop	Current	Power

Supply

Supply Voltage (V_s)

Parallel Strings

LEDs / string Vf per LED (V) If (mA)

Important: Each parallel string has its own resistor calculated independently. Never share one resistor across multiple parallel LED strings — current distribution will be unequal.

Results

Total Current Draw

—

Total Power

—

Strings Count

—

Total LEDs

—

LED Power

—

Per-String Breakdown

String	LEDs	Exact R	E12 R	I (mA)	R Power

Battery Parameters

Battery Capacity

mAh

Battery Voltage

LED Load

Current per String

Number of Strings

strings

Efficiency

PWM Duty Cycle

Circuit Efficiency

Common Battery Presets

Battery Type	Voltage	Typical Capacity
AA Alkaline	1.5 V	2,400 – 3,000 mAh
AAA Alkaline	1.5 V	850 – 1,200 mAh
9V Alkaline block	9 V	400 – 600 mAh
18650 Li-ion cell	3.7 V	1,800 – 3,600 mAh
LiPo 1S pack	3.7 V	100 – 10,000 mAh
LiPo 2S pack	7.4 V	1,000 – 8,000 mAh
CR2032 coin	3.0 V	210 – 240 mAh
USB power bank	5 V	5,000 – 30,000 mAh

Results

Estimated Battery Life

—

Total Current

—

Total Power

—

Energy Used

—

Derating Factor

—

Runtime (hours)

—

hours

Runtime (days)

—

days

Runtime (mins)

—

minutes

At 50% Brightness

—

hours

At 10% Brightness

—

hours

Derating note: Real battery capacity is reduced by temperature, discharge rate, and cell age. This calculator applies your circuit efficiency but add an additional 20–30% safety margin in practice.

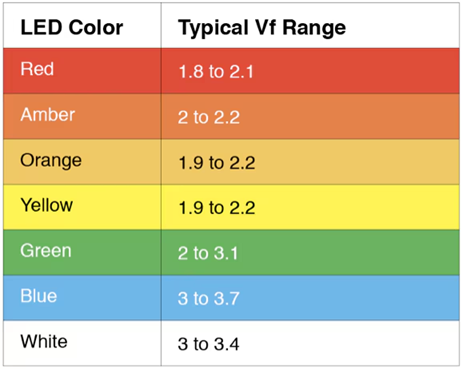

LED Colour & Electrical Reference

Colour	Wavelength	V_f Range	Typical V_f	Typical I_f	Max I_f
🔴 Red	620–645 nm	1.8–2.2 V	2.0 V	20 mA	30 mA
🟠 Orange	590–620 nm	2.0–2.2 V	2.1 V	20 mA	30 mA
🟡 Yellow	570–590 nm	2.0–2.4 V	2.1 V	20 mA	30 mA
🟢 Green (std)	515–530 nm	1.9–2.5 V	2.1 V	20 mA	30 mA
🟢 Green (HB)	520–530 nm	3.0–3.5 V	3.3 V	20 mA	30 mA
🔵 Blue	460–475 nm	3.0–3.6 V	3.2 V	20 mA	30 mA
⚪ White (warm)	2700–3000 K	3.0–3.6 V	3.2 V	20 mA	30 mA
⚪ White (cool)	5000–6500 K	3.0–3.6 V	3.3 V	20 mA	30 mA
🔳 IR	850–940 nm	1.2–1.6 V	1.4 V	50 mA	100 mA
🔸 UV	365–400 nm	3.5–4.0 V	3.7 V	10 mA	20 mA
🔷 Pink	Broad	3.0–3.4 V	3.2 V	20 mA	30 mA
High-Power 1W	Various	3.0–3.8 V	3.4 V	300 mA	350 mA
High-Power 3W	Various	3.2–4.0 V	3.6 V	700 mA	1000 mA

Resistor Value Quick Table — 5V Supply, 20 mA

LED Colour	V_f	Exact R	E12 R	R Power	Recommended Rating
🔴 Red	2.0 V	150 Ω	150 Ω	60 mW	¼W
🟠 Orange	2.1 V	145 Ω	150 Ω	58 mW	¼W
🟡 Yellow	2.1 V	145 Ω	150 Ω	58 mW	¼W
🟢 Green (std)	2.1 V	145 Ω	150 Ω	58 mW	¼W
🟢 Green (HB)	3.3 V	85 Ω	82 Ω	34 mW	¼W
🔵 Blue	3.2 V	90 Ω	100 Ω	36 mW	¼W
⚪ White	3.2 V	90 Ω	100 Ω	36 mW	¼W
🔳 IR	1.4 V	180 Ω	180 Ω	72 mW	¼W
🔸 UV	3.7 V	65 Ω	68 Ω	26 mW	¼W

Standard E12 & E24 Resistor Values

E12 Values (Ω)	E24 Additional Values (Ω)	Notes
1.0, 1.2, 1.5, 1.8	1.1, 1.3, 1.6	Below 2 Ω
2.2, 2.7, 3.3, 3.9	2.0, 2.4, 3.0, 3.6	2–4 Ω
4.7, 5.6, 6.8, 8.2	4.3, 5.1, 6.2, 7.5	4–9 Ω
10, 12, 15, 18	11, 13, 16	Then ×10, ×100…
22, 27, 33, 39	20, 24, 30, 36	Common LED range
47, 56, 68, 82	43, 51, 62, 75	Common LED range
100, 120, 150, 180	110, 130, 160	Most common for LEDs
220, 270, 330, 390	200, 240, 300, 360	Low current LEDs

How to Calculate an LED Series Resistor

Every standard LED requires a current-limiting resistor to prevent it from drawing unlimited current and destroying itself. The formula is R = (V_supply − V_f) / I_f, where V_supply is your power rail voltage, V_f is the LED’s forward voltage (from its datasheet), and I_f is your desired forward current in amperes. The resistor limits current to a safe, predictable level regardless of LED-to-LED variation in Vf.

For example: powering a red LED (V_f = 2.0 V) from 5V USB at 20 mA gives R = (5 − 2.0) / 0.020 = 150 Ω. This is a standard E12 value, so no approximation is needed. The resistor dissipates P = (V_supply − V_f) × I_f = 3.0 × 0.020 = 60 mW. A standard ¼W resistor (250 mW) provides more than 4× derating — ideal for reliable long-term operation.

Golden rule: Always choose a resistor with a power rating at least 2× the calculated dissipation. For continuous duty or high-temperature environments, use 4× derating. A resistor running near its maximum rating will overheat, drift in value, and fail prematurely.

Series and Parallel LED Configurations

When wiring LEDs in series, the same current flows through every LED. The total forward voltage is the sum of all individual V_f values. The single resistor formula becomes R = (V_supply − N × V_f) / I_f. Series strings are efficient — one resistor handles all LEDs — but the supply must be high enough to exceed the total string voltage. A 12V supply can typically drive 4–5 red LEDs in series with a resistor.

When wiring LEDs in parallel, each string must have its own individual current-limiting resistor. Connecting LEDs directly in parallel without resistors is unreliable: even tiny differences in V_f between LEDs cause unequal current sharing, overdriving one LED while underdriving others. Each parallel string is calculated independently using the standard formula, and the total current is simply N_strings × I_{f per string}.

PWM dimming: LED brightness is most efficiently controlled using Pulse Width Modulation (PWM). The same peak current flows during each pulse, maintaining consistent colour and spectral output. PWM frequencies above 1 kHz prevent visible flicker. Average current = peak I_f × duty cycle. This also directly scales power consumption and therefore battery life.

Choosing the Right Resistor Standard Value

The exact calculated resistor value will rarely match a standard component. The E12 series provides 12 values per decade (1.0, 1.2, 1.5, 1.8, 2.2, 2.7, 3.3, 3.9, 4.7, 5.6, 6.8, 8.2 and their decades). The E24 series provides 24 values per decade. For LED circuits, always choose the nearest E12 or E24 value equal to or above the calculated value — this keeps current at or below the target, protecting the LED.

Using a value slightly below the exact calculation will increase the LED current. Check that it still remains within the LED’s maximum rated current from the datasheet. A 10–20% increase in current above target is usually acceptable for indicator LEDs, but high-brightness or high-power LEDs must stay strictly within their thermal limits.

Frequently Asked Questions

What happens if I don’t use a resistor with an LED?

Without a current-limiting resistor, the LED will draw as much current as the supply can deliver. Even a brief moment of overcurrent will destroy the LED junction — it may flash brightly and burn out instantly, or degrade rapidly over minutes. Always use a resistor, or an alternative current-limiting method such as a constant current driver IC.

Can I use the same resistor for LEDs of different colours?

Only if the forward voltages are identical. Red and green standard LEDs have V_f around 2.0–2.1V and can often share a resistor value, but blue and white LEDs have V_f around 3.2V and need a different (lower) resistor value for the same current. Always calculate per LED colour.

How many LEDs can I put in series?

The maximum is limited by your supply voltage. You need V_supply > N × V_f plus at least 0.5–1V headroom for the resistor to function. For a 12V supply with red LEDs (V_f = 2.0V): max series = floor((12 − 1) / 2.0) = 5 LEDs. Leaving 2V across the resistor gives R = 2.0 / 0.020 = 100Ω.

What is the forward voltage (Vf) of an LED?

Forward voltage is the voltage drop across the LED when it is conducting at its rated current. Unlike a resistor, an LED is not ohmic — its voltage drop is relatively fixed regardless of supply voltage, determined by the semiconductor bandgap. Red LEDs typically drop 1.8–2.2V; blue and white LEDs drop 3.0–3.6V due to the wider bandgap of the GaN semiconductor material.

Should I use E12 or E24 resistor values?

E12 values are available from all suppliers and are more than adequate for LED circuits. The 8.3% maximum deviation between E12 values means the current will differ by at most ~10% from target — perfectly acceptable. E24 gives finer control (3.4% max deviation) and is useful for precision brightness matching in multi-LED displays, but is unnecessary for most applications.

Can I use a constant current driver instead of a resistor?

Yes, and for high-power LEDs (1W+) a constant current driver IC is strongly preferred. Resistor-based limiting wastes power in the resistor as heat, and current varies slightly with supply voltage and LED temperature. A constant current driver maintains precise, stable current regardless of supply voltage variation, improving efficiency and LED lifespan significantly.

Calculations assume ideal resistor values and nominal LED forward voltages. Actual Vf varies with temperature (approximately −2 mV/°C for standard LEDs), current level, and manufacturing tolerance. Always consult your specific LED datasheet and apply appropriate safety margins.
